Description

Key Features & Benefits:

12-Channel ECG for Comprehensive Monitoring: Capture all 12 leads simultaneously for a complete cardiac profile in a single glance.
Large 8-Inch TFT Color Display: View ECG waveforms clearly with an 800×480 high-resolution screen for better clinical decisions.
Advanced Glasgow Interpretation Algorithm: One of the world’s most reliable ECG interpretation engines, offering age, gender, and race-specific analysis.
Versatile Print Formats: Supports 3×1, 6×1, 12×1, long lead mode, and real-time rhythm printing – ideal for varied clinical workflows.
USB & FTP Connectivity: Easily export ECG reports via USB drive, direct print, or upload to FTP servers – ready for paperless workflows.
Large Memory Capacity: Store up to 400 ECGs internally and expand storage with external USB drives.
Built-In Rechargeable Battery: Lithium-ion battery with 3000mAh capacity ensures mobility and continued operation during power interruptions.
User-Friendly Interface: Color-coded silicone keys, full QWERTY keyboard, and intuitive navigation simplify daily operations.
EMR Integration Ready: HL7 compatibility and PDF export streamline record-keeping and reduce paperwork.

What’s in the Box:

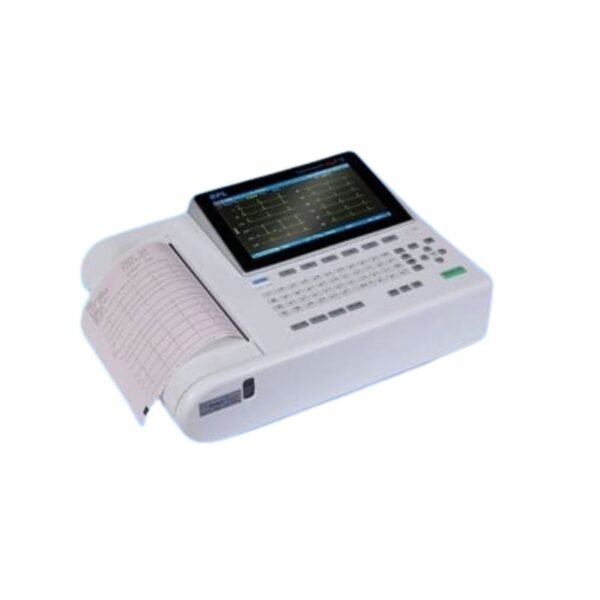

BPL Cardiart GenX12i ECG Machine
Patient Cable
4 x Limb Electrodes
6 x Chest Electrodes
Thermal Paper Roll or Z-Fold
Power Cord and Earth Cable
User Manual

Technical Specifications:

Display: 8” TFT Color LCD (800×480 pixels)
Storage: 400 ECGs (Internal), expandable via USB
Power Supply: 100–240V AC, 50/60 Hz
Battery: Rechargeable 3000mAh Li-ion
Weight: Approx. 4.5 kg (with battery)
Dimensions: 420mm × 320mm × 102mm
Connectivity: USB, FTP, HL7 (optional)

Compatible Devices & Accessories

Patient Cables & Electrodes
10-Lead Banana Type ECG Patient Cable: Compatible with BPL Cardiart GenX12i, GenX3, 6208, 8108, 9108, and 9108D models. Features inbuilt defibrillator and ESU protection for clear signal output.

Printers
USB Direct Print Feature: Supports selective USB printers for direct ECG report printing. Ensure compatibility with BPL-approved printer models.

Data Storage & Connectivity
USB Drives: Facilitates easy export of ECG reports and data storage.
FTP Upload Profiles: Allows multiple FTP upload configurations for seamless data transfer.
HL7 Export Options: Optional feature enabling integration with Electronic Medical Records (EMR) systems.

ECG Paper Rolls
BPL ECG Paper Roll (80 mm x 20 mtr): Designed for use with BPL Cardiart GenX3 and 6208 models. While not explicitly mentioned for GenX12i, ensure paper roll dimensions match the printer specifications of your device.
